Outdoor AM Transmitter
Please call if you would like to order 2 or more transmitters or you are a technician installer or distributor, we may be able to offer a better discount. (919) 367-0607 or (866) 935-9393. Not Sure What to Order? Click here to learn about the RangeMaster system.
The first thing to decide when ordering is whether to go with the AM1000C or Am1000A outdoor model. The Am1000C is the cheaper crystal controlled version, for when you won't be changing frequencies much (you get 2 crystals, we stock 1590-1710 but can get any frequency above 1200) Also the AM1000C is your choice if you are going to be doing multiple transmitters now or in the future. Multiple transmitters require the additional stability of the AM1000C. We find that almost all of these units go onto 1610 Khz or 1620 Khz anyway, so this may be a good choice for you. The FCC tries to keep these frequencies open for informational services so they tend to be clear.
The AM1000A is the agile version, frequency is easily set with dip switches. This is the only difference between the AM1000C and Am1000A. It is possible to convert back and forth between the AM1000C and Am1000A with a conversion kit in the field.

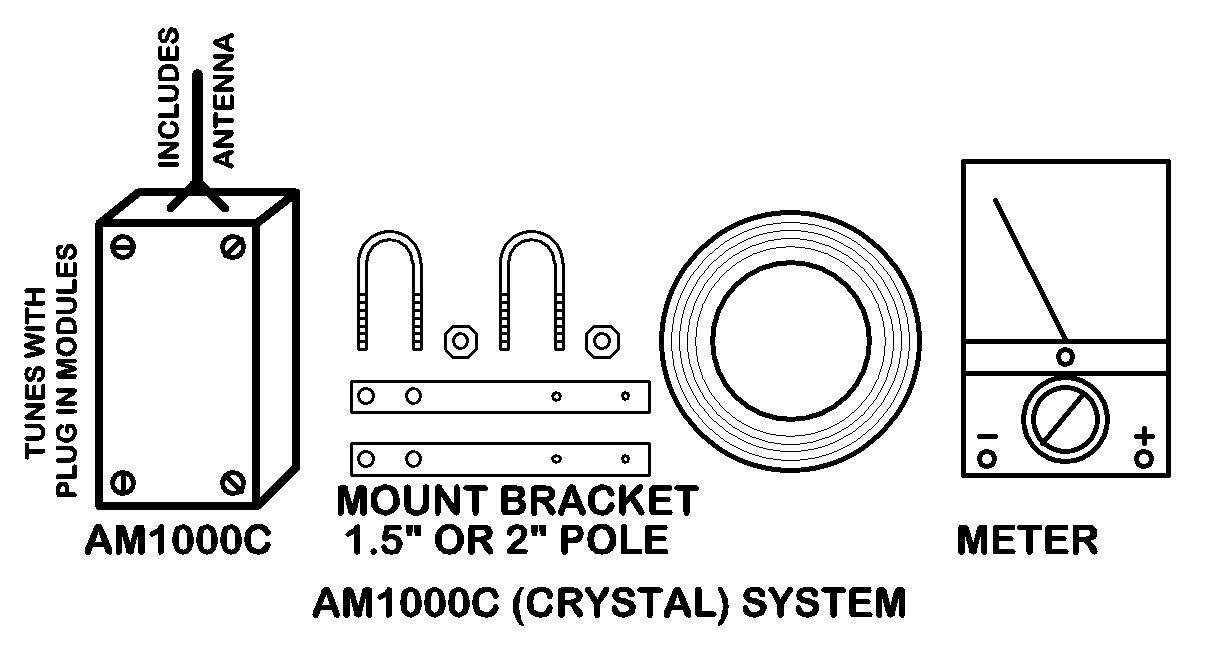

The usual package to set up a station would be the AM1000C or Am1000A outdoor unit, the mounting bracket which will mount the unit to a 1 1/4" or 2" mast, and a roll of 100' wire. (Call if you need more then 100' of wire) Do not attempt to use the cheap 50' of Cat 3 wire outdoors. Most people get the antenna locally (radio shack #21-903, it will be cheaper because shipping is high on a 102 inch item) but if you need or want to, add the antenna below and we will be happy to ship you an antenna. This antenna is a sturdy standard 102" antenna like used for citizens band radios, and is readily available at Radio Shack and CB and Ham stores.
Included free with the AM1000 outdoor transmitter is manual, 40 minute install video, studio audio/power interface module, cable ferrite, spare tune shunt, power supply, tuning tool, mount hardware, and if you order the AM1000C the 2 crystals.
Available options are Am1000T (flashes green light when at legal power level), pole/mast mount bracket AM1000BR, 100' 2 pair #22 wire AM1000W, 102" CB whip antenna.
Note, if you are considering a multiple transmitter system (transmitters within each others range) we recommend the Am1000C crystal controlled model. Please call if you have any questions.
The Am1000C is crystal controllable, we stock 1590-1710Khz. We recommend 1610 or 1620 for your station. Drive around and listen on a car radio and/or try radio-locator.com to determine what channel is clear in your area. You get 2 crystals with your unit and you can trade one in at anytime for anther frequency should you need to. We recommend staying above 1400 for best range. Please add your crystal frequency choices (2) as a comment to one of the second address lines on the order form, or e-mail us.
The AM1000T makes it easier to set the power, it flashes a green light when you are at the FCC legal .1 watt. The AM1000PR NEW studio interface module is free with each transmitter. Alone it is $35.
Also you will need a Volt Ohm Meter for tune up. Let us know if you don't have a meter as a comment in the second address line (or e-mail us) and we will send you an inexpensive meter. Everything else you need you should be able to get at Radio Shack or Lowes/Home Depot. That would be: 1 1/4" mast, mast mount, ground wire, ground rod, rod wire clamp, hardware to secure wire and bracket, audio equipment or player, audio page depending on how you install the transmitter. am1000 installation checklist (pdf)
Please be sure change the shipping selection if you want 2 day or 1 day shipping, default is Ground shipping. Please be sure to include your telephone and E-mail and crystal frequency selection (if needed).
We accept Visa, MasterCard, AMEX, and Discover.
Warranty is one year parts and labor.
Thank you for your order!
Important note! If you are ordering the AM1000C you will need to choose 2 crystal frequencies. We stock 1590 - 1710 but can get 1000 Khz - 1580 Khz on special order (2-3 weeks without extra fee). You can trade in a crystal at any time should you need to change frequencies. Add the frequencies you need to the order form somewhere or E-mail them to us (See Contact page for E-mail).
You will also need a 102" antenna, Radio Shack # 21-903 or any CB shop will have it. If you don't want to get an antenna locally we can ship you one, just add it to the order form above, the $40.15 includes shipping.
